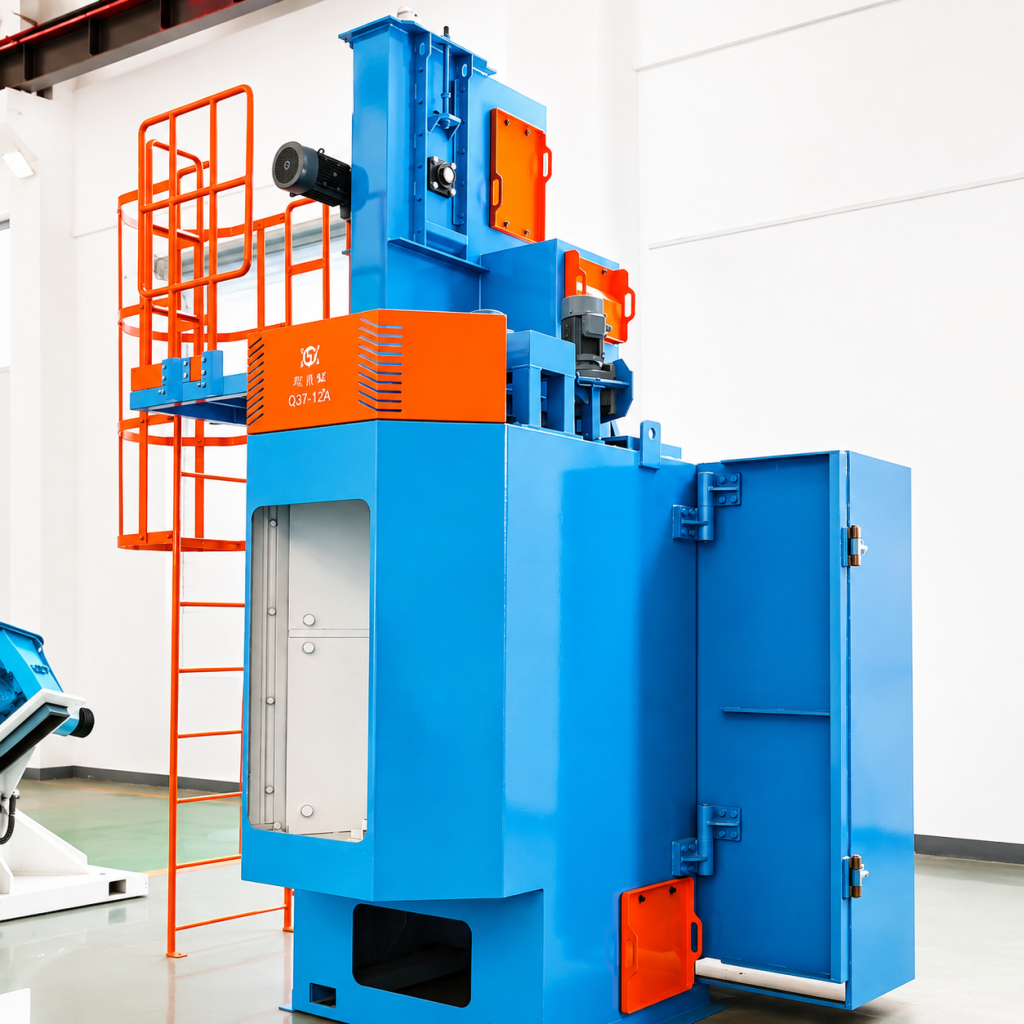

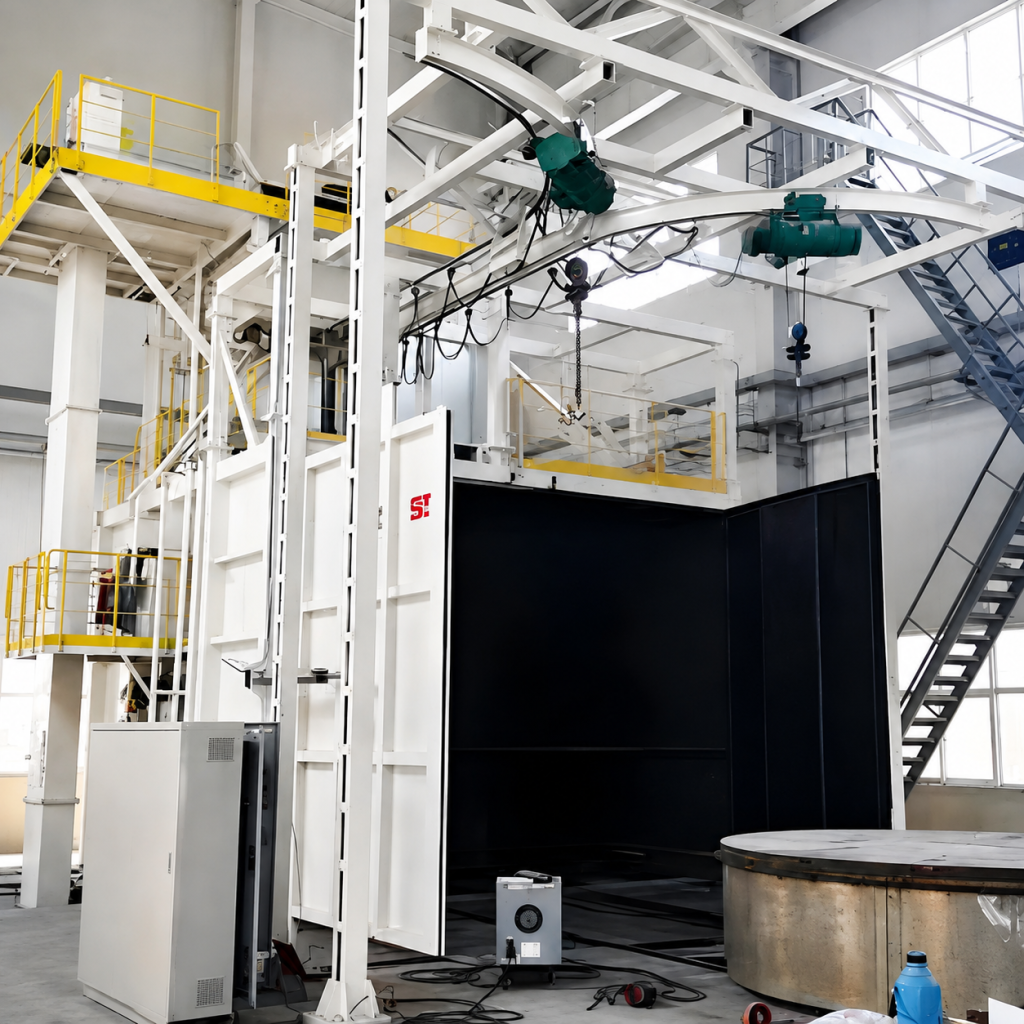

Turntable Shot Blasting Machine

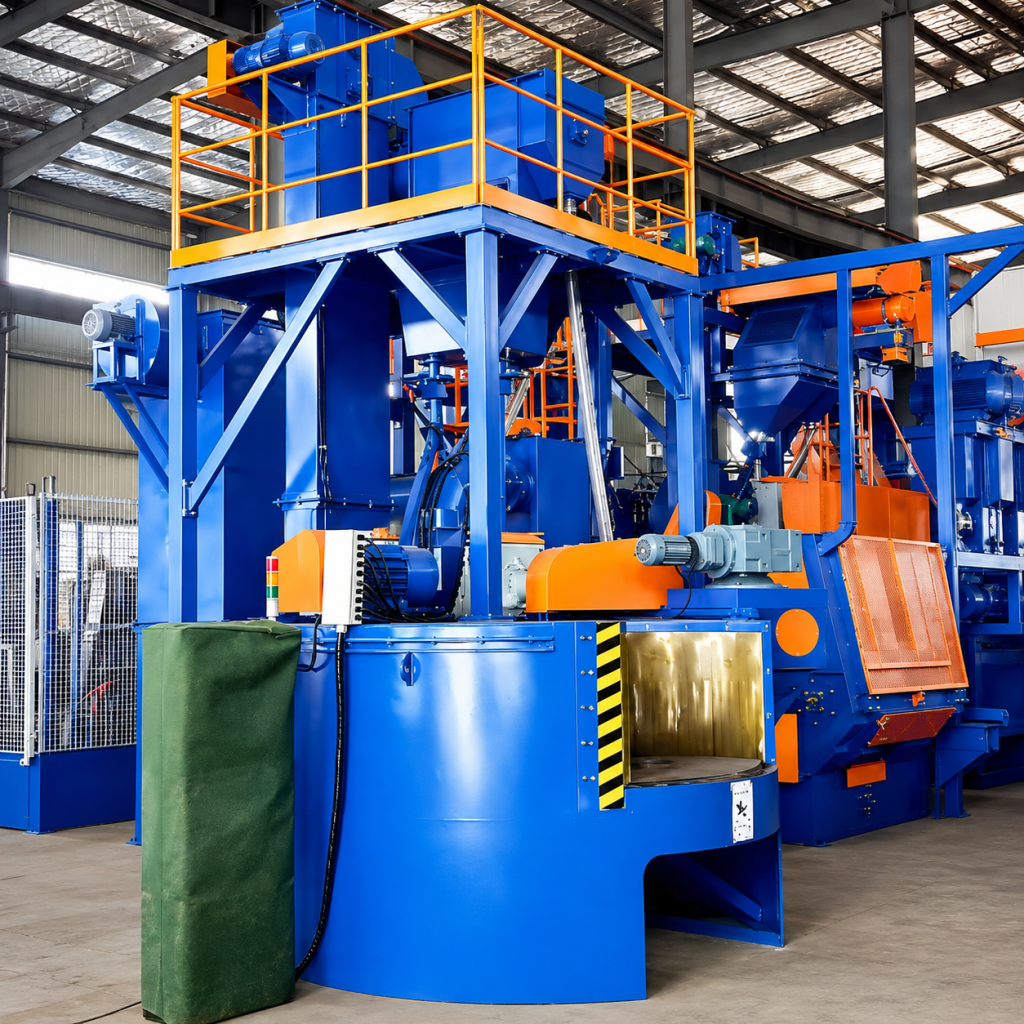

Working Principle and Process Flow

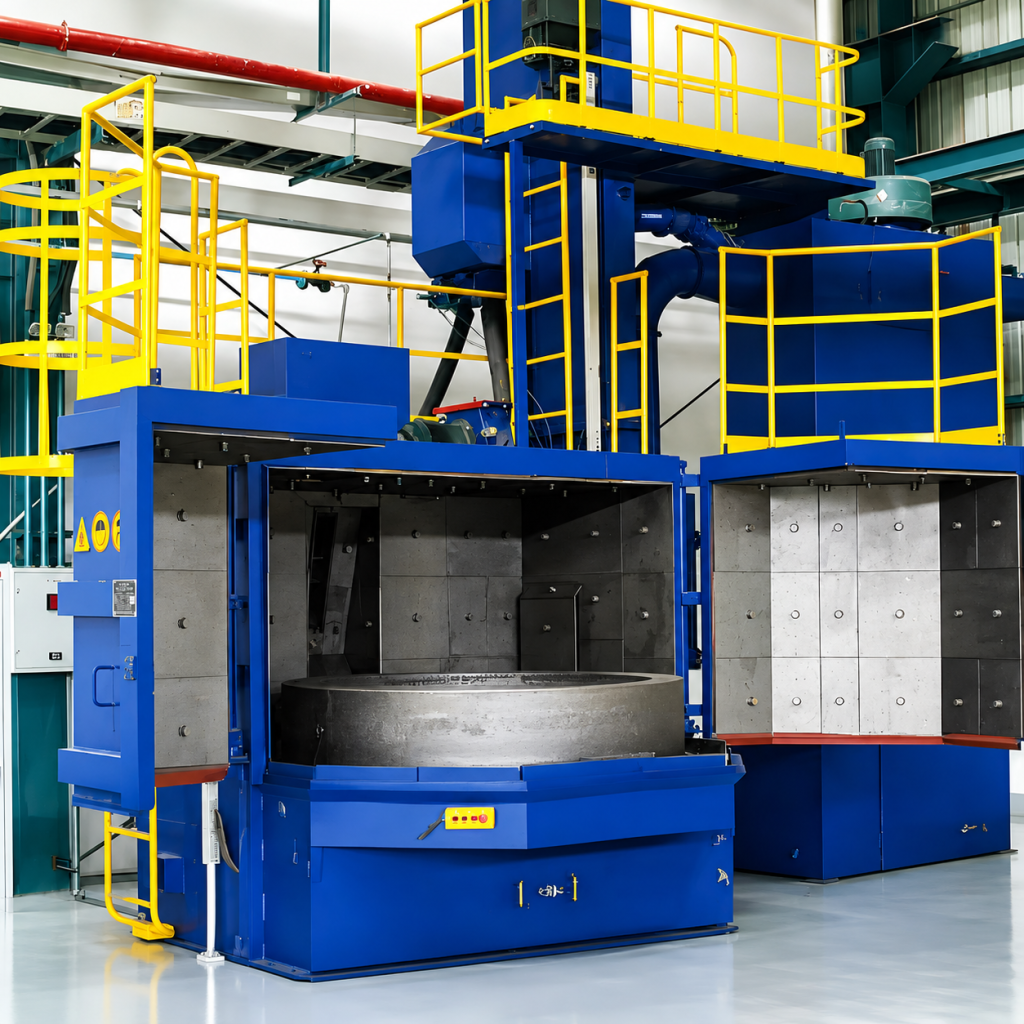

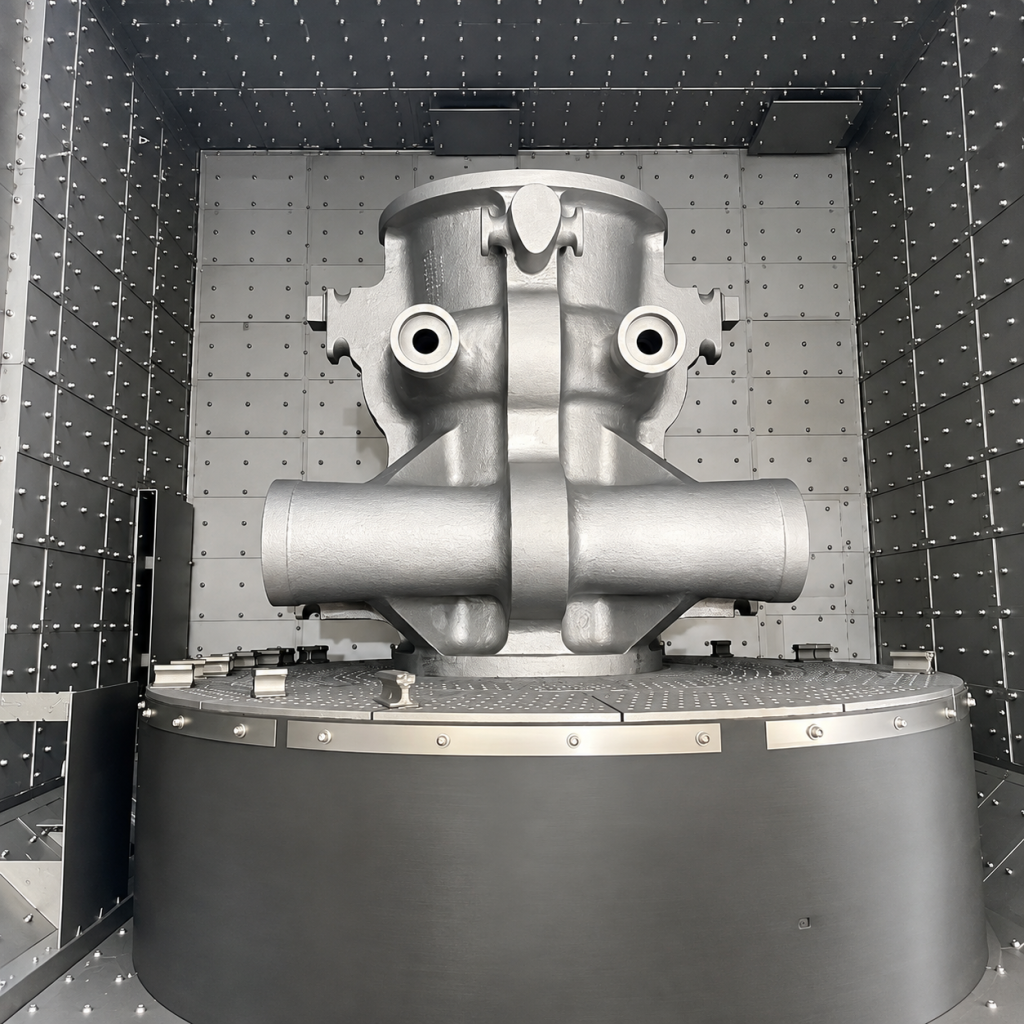

Workpieces are placed on the indoor turntable. The variable-frequency drive system ensures smooth rotation at 0.3-3 rpm. Shot is projected at high speed through top and side blast wheels to achieve multi-angle coverage. The removed scale and shot are recovered by the bottom scraper, conveyed by screw conveyor to the bucket elevator, separated by air-wash separator, and then recycled. Dust is filtered by the pulse cartridge dust collection system before compliant discharge. When the workpiece rotates out of the chamber with the turntable, quality inspection can be performed directly.

Process flow: loading -> turntable rotation -> shot blasting -> rotate out for inspection -> unloading

Product Advantages

Zero tumbling and low damage: The workpiece rotates smoothly with the turntable without dropping or collision, making it especially suitable for thin-walled, precision, and high-value parts.

Visible process connection: Once the workpiece rotates out of the chamber, the cleaning result can be observed directly, supporting in-line quality inspection and reducing waiting time for the next process.

Flexible blasting layout: Blast wheels can be arranged from top and side angles to match complex geometries and ensure full coverage.

High automation and digitalization: PLC + touch-screen control allows programmable storage of process parameters. Industry 4.0 data interfaces are reserved for remote monitoring and MES integration.

Low total cost of ownership (TCO): Shot recovery rate is >=95%. The wear-resistant manganese-steel chamber and quick-connect liners reduce energy consumption by 10%-15% under equivalent cleaning results, and wear-part service life is above the industry average.

International environmental compliance: The fully enclosed chamber plus pulse cartridge dust collection keeps dust emission <=30 mg/m3 and meets ISO 14001 and mainstream European and American environmental regulations.

Ready to install and use: The compact structure requires no foundation pit, shortens installation time, and reduces floor space.

Why Choose Us

1. Global compliance and certification system: Products strictly follow the ISO 9001 quality management system and ISO 14001 environmental management system. CE, UL, or mandatory certifications for the target market can be provided as required, helping the equipment clear customs smoothly and comply with local safety and environmental regulations.

2. Engineering customization capability: We do not force standard machines into unsuitable applications. We provide full-process customization from turntable dynamic simulation and blast wheel flow-field optimization to automatic loading and unloading. Engineers can provide free on-site surveys to ensure the equipment precisely matches your takt time, plant layout, and workpiece characteristics.

3. Secure supply chain and controllable core components: Core components such as blast wheels, wear-resistant liners, and separation systems are manufactured in-house with full quality traceability. Multiple global spare-parts warehouses keep common wear parts ready for shipment within 24 hours, minimizing downtime risk.

4. Digital delivery and remote operation support: Full English technical documents, 3D installation guidance videos, and operator training are available. The equipment supports remote diagnosis and software upgrades, helping multinational plants share spare-parts inventory and implement predictive maintenance.

5. Lifecycle cost (LCC) optimization: Through optimized shot circulation paths and dust-collection air ducts, the equipment reduces energy consumption by 10%-15% under equivalent cleaning results. Longer wear-part life and high shot recovery rate significantly reduce long-term operating cost.

6. Verifiable track record and shared risk: With more than 20 years of experience in shot blasting technology and over 10 related patents, every machine is supported by 3D modeling and finite element analysis. Clear performance guarantee terms and warranty plans make procurement decisions evidence-based.

Applications

Scope Of Application

The machine is suitable for surface cleaning and strengthening of small and medium-sized cast iron parts, steel castings, forgings, and heat-treated parts. It is widely used in automotive manufacturing, aerospace, precision machine tools, general machinery, and foundry industries. It is especially suitable for shot blasting treatment of impact-sensitive, flat, or thin-walled workpieces such as engine connecting rods, diaphragm springs, flanges, and bearings, significantly improving fatigue strength and durability.
