Drum Shot Blasting Machine

Q31 Series Drum-Type Shot Blasting Machine

Request a Quote

Product Overview

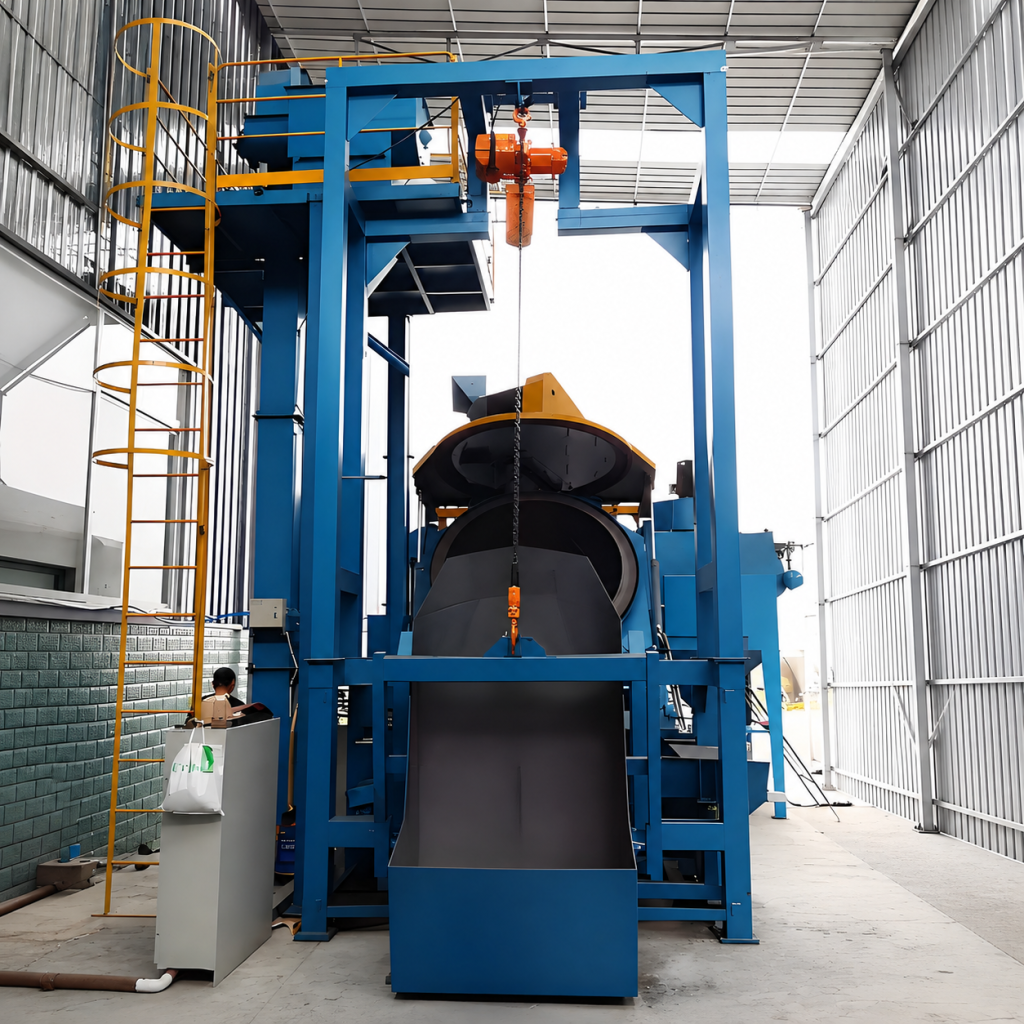

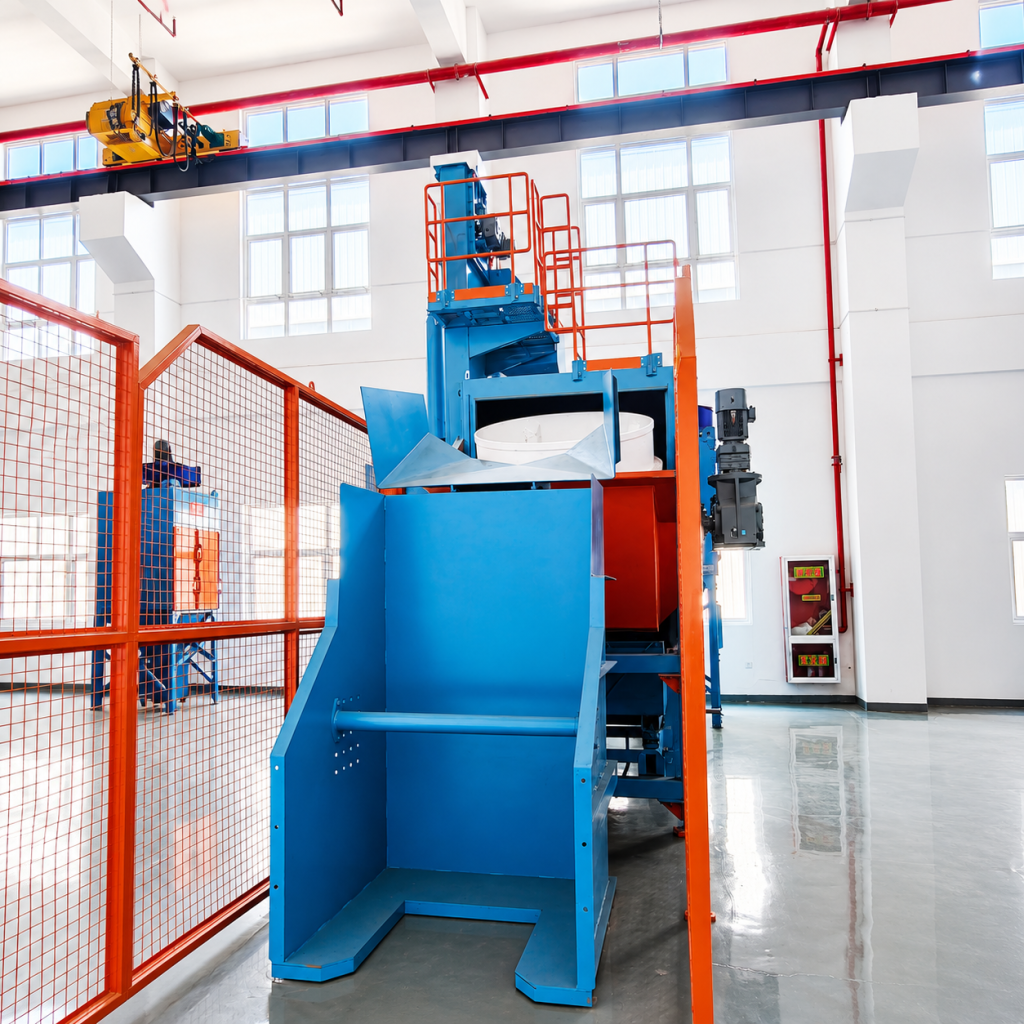

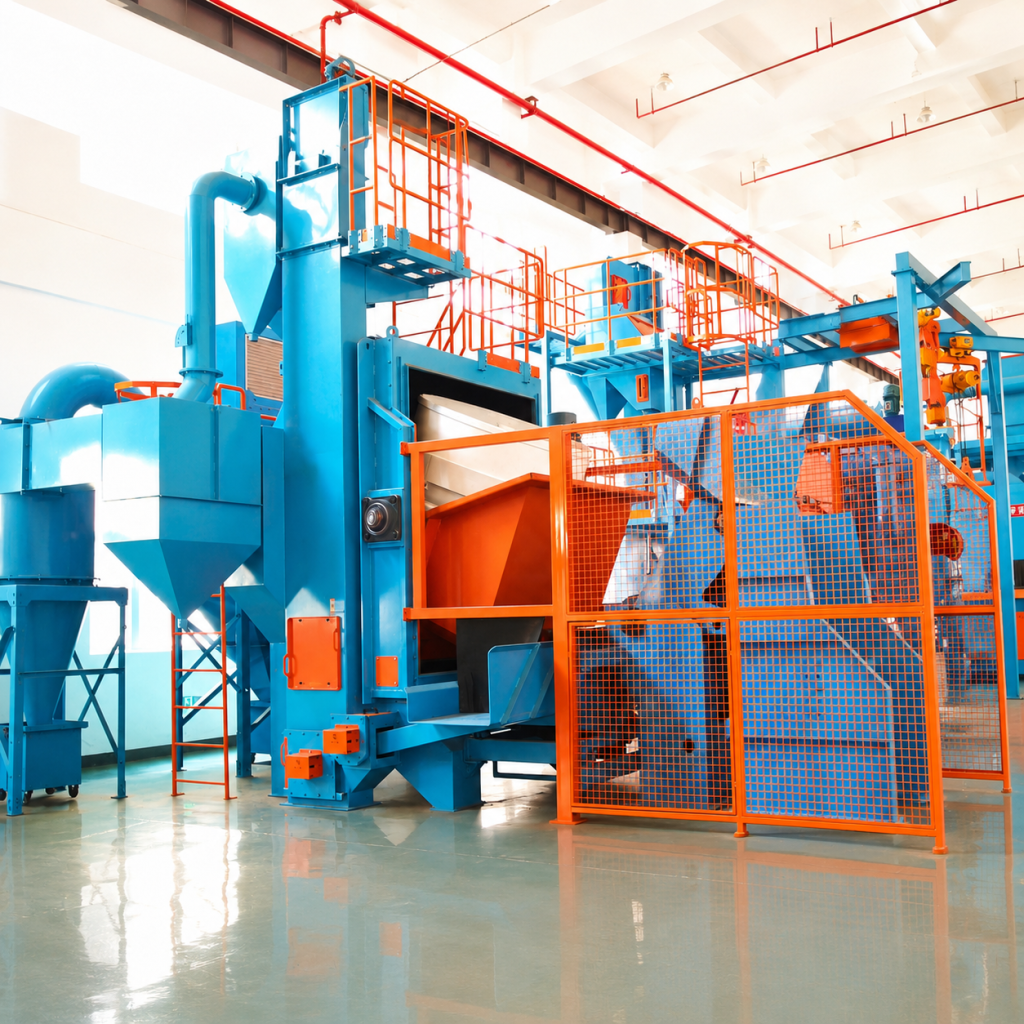

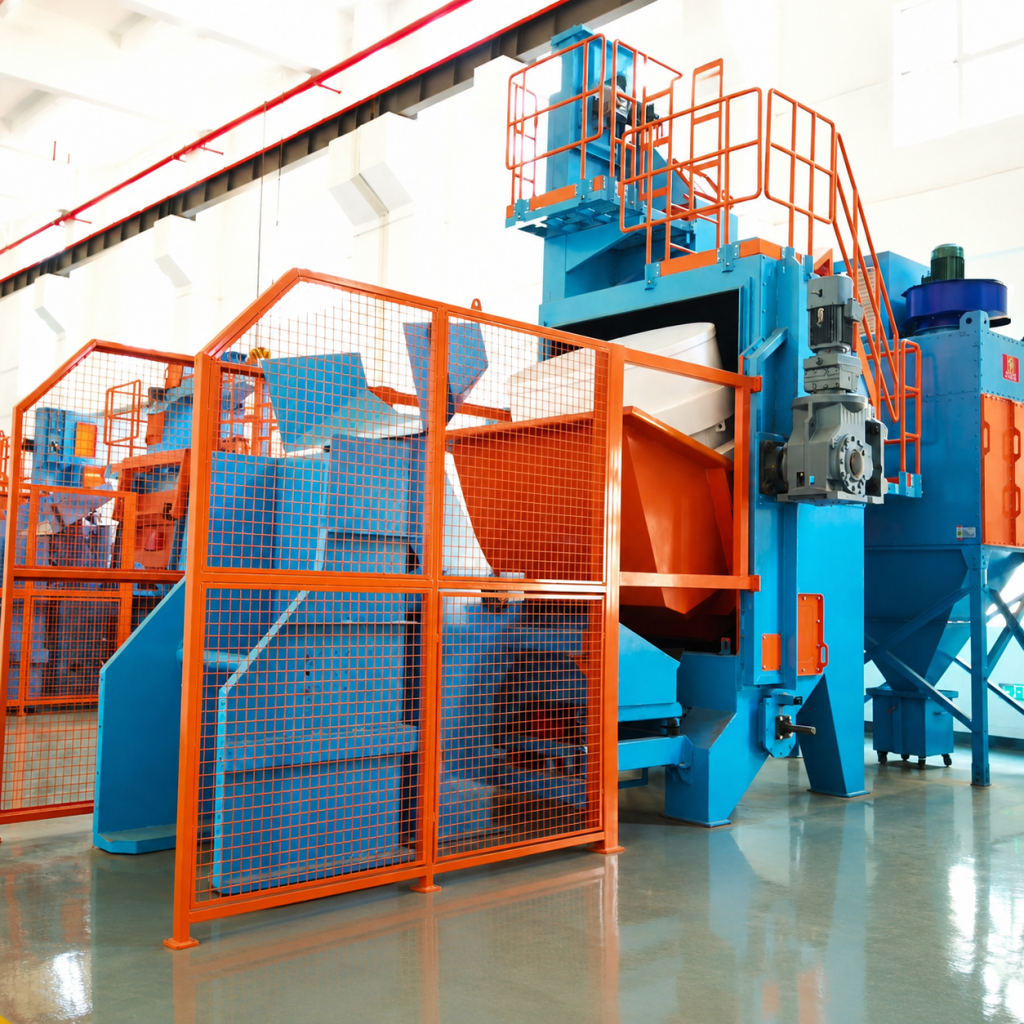

The Drum Shot Blasting Machine is designed for efficient surface cleaning, descaling, rust removal, and strengthening of medium and heavy metal workpieces. With a Φ1500 mm drum and a maximum loading capacity of 1000 kg, it is suitable for castings, forgings, structural parts, and other batch-produced components.

The machine features a 30 kW high-efficiency blast wheel and a typical processing time of 5–20 minutes per blast cycle, delivering uniform and reliable cleaning results. The drum is driven by a 4 kW motor, while the integrated dust collection system provides an airflow of 2800 m³/h to maintain a cleaner working environment.

For easier operation, the machine is equipped with an electric door, hydraulic loading system, and horizontal vibration unloading system. A PLC and touchscreen control system enables convenient parameter setting, stable operation, and improved production efficiency.

With robust construction, reliable performance, and flexible configuration options, this drum shot blasting machine is an ideal solution for foundries, machinery manufacturers, automotive parts plants, and general metalworking industries.

Technical Parameters

JFGT1500 Drum Type Shot Blasting Machine Specifications
Category	Parameter	Specification
Technical Specifications	Drum Diameter	Φ1500mm
Technical Specifications	Belt Load Capacity	1000kg
	Processing Time	5–20 min/blast cycle
	Noise Level	≤85dB
	Dust Emission Concentration	≤5~50mg/m³ (Optional)
	Total Air Consumption	0.8~1.2m³/min
	Belt Material	○ Rolled Mn13, ○ X120Mn12
Technical Parameters	Dust Collector Power	7.5kW
	Bucket Elevator Power	3kW
	Screw Conveyor Power	2.2kW
	Blast Wheel Power	30kW
	Drum Power	4kW
	Door Rotation Power	5.5kW
	Shot Control Valve Diameter	Φ76mm
	Dust Collection Airflow	2800m³/h
	Door Opening Method	Electric
	Loading Method	● Hydraulic Lifting, ○ Chain Hoist
	Unloading Method	○ Manual, ● Horizontal Vibration
	Automatic Control System	PLC + Touchscreen Control
Note: ● = Selected configuration; ○ = Optional / not selected

Note:

The parameters above are reference values for standard models and can be customized according to workpiece specifications and production requirements.
Cleaning chamber size, number of blast wheels, and blast wheel power can be adjusted as required.
Equipment configuration can be optionally upgraded.
