What Is a Shot Blasting Machine? Working Principle, Components and Industrial Applications

Jack · 11 OCT, 2026

A shot blasting machine is enclosed surface-preparation equipment that propels abrasive media at a workpiece to remove rust, mill scale, sand, old coating and other surface contamination. Most industrial systems use one or more blast wheels to accelerate steel shot or steel grit. The machine then recovers, cleans and recirculates the abrasive for repeated use.

Manufacturers use shot blast equipment to prepare castings, forgings, welded structures, steel plate, profiles, pipes and fabricated assemblies. The process can clean a surface, create a controlled profile for coating, reveal defects hidden by scale or residue, and produce a more uniform appearance. The correct machine depends on the part’s size, weight, geometry, material, production volume and required finish.

What Is a Shot Blasting Machine

A shot blasting machine combines abrasive acceleration, workpiece handling, media recovery, separation, dust control and process control in one enclosed system. The work chamber contains the abrasive and keeps the operator away from the blast zone. A work-handling device rotates, tumbles, suspends or conveys each part so the abrasive stream reaches the required surfaces.

The term is often used for wheel-blast equipment. In a wheel-blast system, an electric motor turns a bladed wheel at high speed. Abrasive enters the wheel, is distributed by the control cage and impeller, and leaves the blades in a concentrated blast pattern. The pattern must be aimed at the workpiece and matched to the part movement. A poorly aligned pattern can waste energy, accelerate wear and leave shadowed areas under-cleaned.

Shot blasting is related to, but different from, air blasting. Air-blast equipment uses compressed air to carry abrasive through a nozzle. It is flexible for manual work and complex or localized areas. Wheel blasting is commonly selected when parts can be handled in a repeatable path and the production goal favors automation, consistent exposure and high throughput.

How a Shot Blasting Machine Works

Although machine layouts differ, most wheel-blast systems follow the same closed-loop sequence.

Load the workpiece. Parts enter the chamber on a belt, hook, trolley, turntable, roller conveyor or overhead conveyor. The handling system controls orientation and movement.
Start the abrasive stream. A metering valve feeds steel shot or grit to the blast wheel. The wheel accelerates the media and directs it toward the workpiece.
Expose the required surfaces. The part tumbles, rotates or passes through several blast patterns. Exposure time and part motion determine whether recesses, edges and broad faces receive adequate coverage.
Recover the abrasive. Spent media and removed contaminants fall to a screw conveyor or another recovery device, then move to a bucket elevator.
Separate reusable media. A separator removes dust, scale, broken abrasive and oversized debris. Serviceable media returns to the storage hopper.
Collect airborne dust. The ventilation system maintains airflow through the enclosure and carries fine particles to a dust collector. Cleaned air is discharged according to the system design and local requirements.

This recirculating arrangement reduces media waste, but it does not eliminate the need for process control. Operators still need to monitor media level, abrasive size distribution, wheel amperage, blast pattern, separator performance, ventilation and wear parts.

Main Components of a Shot Blasting Machine

Blast wheels

The blast wheel provides the cleaning energy. Its wheel diameter, motor power, blade design, rotational speed and abrasive flow affect cleaning intensity and coverage. Multiple wheels may be positioned around a pass-through machine so the top, bottom and sides of a workpiece are treated in one cycle.

Blast chamber and wear protection

The chamber contains the abrasive and protects the surrounding work area. Replaceable liners shield high-wear zones from direct impact. Manganese steel, alloy plates and rubber curtains may be used according to the machine design and abrasive path. Regular liner inspection prevents abrasive leakage and damage to the chamber shell.

Workpiece handling system

The handling system determines which parts the machine can process. Rubber tumble belts cushion smaller parts. Metal belts carry heavier or sharp-edged components. Hooks suspend irregular or delicate workpieces. Rollers move plate, profiles and pipes through the blast zone. Trolleys and turntables support large or heavy fabrications.

Abrasive recovery and separator

Screw conveyors, bucket elevators, screens and air-wash separators return usable abrasive to the hopper. Effective separation matters because fine dust reduces cleaning performance and accelerates wear, while oversized debris can block valves or damage wheel components.

Dust collection and ventilation

A dust collector removes fine particles generated during blasting. Correct airflow improves visibility inside the chamber, keeps abrasive cleaner and limits dust escape when doors open. Filter area, fan capacity, duct layout and maintenance access should be sized for the machine and the contamination load.

Electrical and process controls

The control system coordinates loading, doors, conveyors, wheel motors, abrasive valves, elevators and dust collection. Interlocks prevent unsafe sequences. More advanced lines may store recipes, monitor motor current, track operating hours and integrate with upstream or downstream equipment.

What Surface Problems Can Shot Blasting Solve

Rust and corrosion products. A properly selected abrasive and exposure cycle can remove loose or adherent rust from steel surfaces.
Mill scale and heat-treatment scale. Blasting breaks away scale that can interfere with inspection, welding, coating or machining.
Foundry sand and casting residue. Tumble, drum and hook machines are widely used to clean castings after shakeout or heat treatment.
Old paint and coating. Shot blasting can strip many coatings before repair or recoating, subject to the coating chemistry and the part’s condition.
Welding residue and fabrication contamination. Pass-through systems clean welded structures and profiles before painting.
Inconsistent surface profile. Controlled media size, flow and exposure can create a more repeatable anchor profile for coating adhesion.

Shot blasting does not replace every finishing process. Thin sheet can distort if impact energy is excessive. Soft metals can dent or embed abrasive. Parts with sealed cavities, narrow passages or masking requirements may need air blasting or another method. A trial using representative workpieces is the safest way to confirm finish, coverage and cycle time.

Common Machine Types and Applications

Machine type	How parts move	Typical workpieces	Best production fit
Rubber tumble belt	Parts tumble on a rubber belt	Small and medium castings, forgings and hardware that can contact one another	Batch cleaning with gentler handling
Metal tumble belt	Parts tumble on a steel or manganese belt	Heavy, hot or sharp-edged castings and forgings	Rugged batch processing
Drum	Parts roll inside a rotating drum	Medium or heavy components suitable for tumbling	Simple, durable batch cleaning
Hook type	Parts hang from a rotating hook	Irregular, larger or impact-sensitive castings, forgings and weldments	Flexible batch production
Overhead conveyor	Suspended parts travel through several blast zones	Mixed suspended components and production-line parts	Continuous or indexed high-volume production

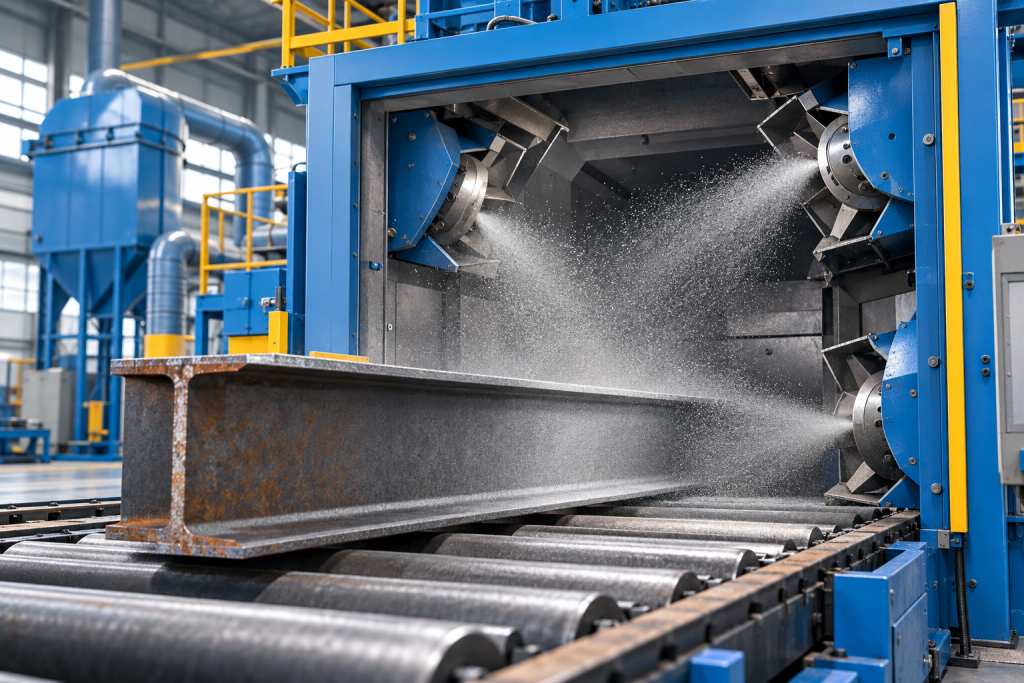

Roller conveyor	Parts pass through on powered rollers	Plate, structural sections, welded frames, pipe and round bar	Continuous pass-through cleaning
Turntable	Parts rotate on a table	Gears, flanges, flat parts and selected precision components	Controlled batch exposure
Trolley	A rail trolley carries the load into the chamber	Very large, long or heavy fabrications	Low-volume heavy-duty work

Machine names describe handling style, but actual suitability depends on details such as door opening, load capacity, part envelope, number and position of wheels, abrasive flow, fixture design and unload method. Two machines with the same general name can serve very different production targets.

Key Specifications Buyers Should Understand

Workpiece envelope and batch weight. Use the largest real part, including fixtures and lifting clearance. For batch equipment, include total load and how parts distribute during movement.
Required throughput. State parts per hour, tonnes per shift or line speed. Include loading, unloading and changeover time rather than quoting blast time alone.
Cleaning grade and surface profile. Define the coating or downstream process requirement. A target such as Sa 2.5 should be tied to the applicable project specification and verified on representative material.
Abrasive type and size. Steel shot produces a different profile from angular steel grit. The optimum mix depends on the contamination, substrate, finish and recovery system.
Wheel arrangement and installed power. Wheel position affects coverage. Motor power alone does not prove performance unless abrasive flow, blast pattern and part movement are also correct.
Dust collector capacity. The collector must match chamber airflow and contaminant load. Consider filter access, disposal method and any local environmental requirements.
Wear-part access. Blades, control cages, impellers, liners, seals and curtains are normal wear items. Access and replacement time influence uptime and maintenance cost.
Controls and line integration. Confirm interlocks, recipe needs, communication signals and interfaces with paint lines, conveyors or robotic handling.

How to Prepare a Useful Machine Inquiry

A supplier can recommend equipment more accurately when the inquiry describes the application, not only the desired machine name. Prepare the following information before requesting a proposal:

Workpiece drawings or clear photos, including dimensions and unit weight
Material and current surface condition
Required cleaning grade, roughness or coating specification
Hourly, daily or annual production volume
Current handling method and preferred loading height
Available floor space, power supply and dust-discharge constraints
Any restrictions on part-to-part contact, masking or abrasive retention

Representative sample testing is especially useful when a part has deep recesses, thin walls, delicate edges or an unusual coating. A trial can confirm that the selected abrasive, handling method and exposure time produce the required result without unacceptable damage.

Frequently Asked Questions

What materials can be processed in a shot blasting machine

Most wheel-blast machines are built for ferrous castings, forgings, plate, profiles, welded structures and similar metal parts. Some non-ferrous workpieces can also be processed, but abrasive selection and impact energy must be tested to avoid contamination, denting or dimensional change.

Can shot blasting damage a workpiece

Yes, if the media, wheel power, exposure time or handling method is unsuitable. Thin sheet may distort, soft parts may dent, and precision edges may round. The machine should be selected around the most damage-sensitive feature, followed by a sample trial.

Can a shot blasting machine achieve Sa 2.5

Many industrial machines can be configured to reach a near-white metal cleaning level such as Sa 2.5 on suitable steel. The result still depends on initial condition, contamination, abrasive mix, exposure, coverage and inspection method. Treat the grade as an acceptance requirement to be verified, not as an automatic result of buying a particular machine.

Is abrasive reused

Yes. Wheel-blast systems normally recover and separate metallic abrasive for repeated use. New abrasive is added to replace material carried out with parts, removed by the separator or broken down during operation. Keeping a stable operating mix helps maintain finish and cycle consistency.

Get a Machine Recommendation for Your Workpiece

The best starting point is the workpiece. Send JC Blasting the material, maximum dimensions, unit or batch weight, current surface condition, required finish and target throughput. The engineering team can compare suitable handling methods and recommend a machine configuration for sample testing or quotation.
